Description
(Lithium Battery Separator Powder) Spray Dryer is the most widely used process in liquid shaping technology. It is suitable for producing powder and granules solid products from solution, emulsion, soliquoid, and pumpable paste materials. Therefore, when the particle size, final moisture, bulk density and granules shape meet the accurate standard, centrifugal spray drying is a ideal drying process.
Working Principle

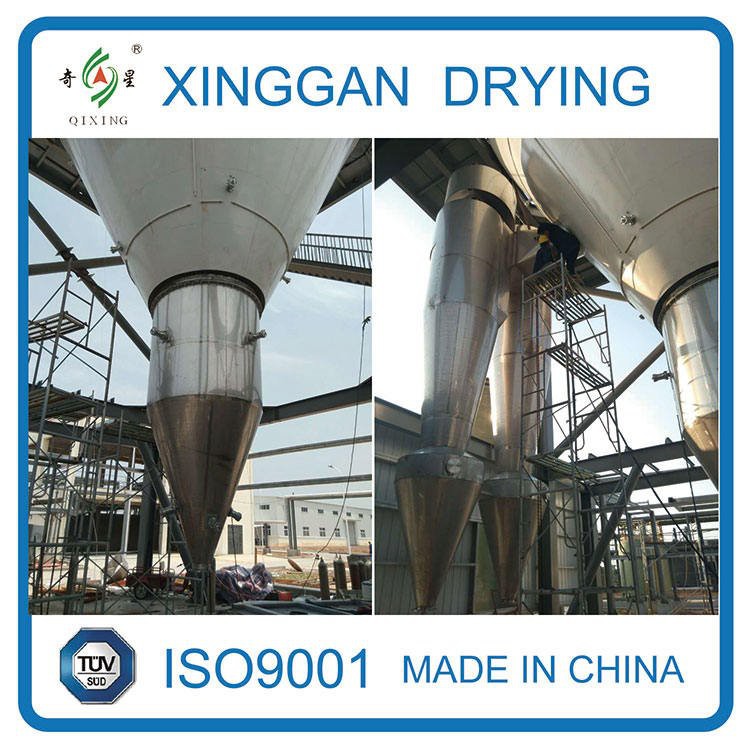

Liquid material is atomized through a special pressure nozzle with a high-pressure pump. Hot air enters the dryer after being adjusted by an air distributor. The material and hot air is mixed in the dryer, rapidly carries on heat and mass transfer. Powder or granular products are produced in a very short time. Products with larger particles size are discharged from the bottom of the dryer, smaller particles enter the cyclone with hot air. The exhaust gas is discharged into the air after dust removal in a scrubber. The dryers can be divided into high, middle and low-pressure spray dryers according to different pressures of atomization, while taking into account different flow fields, they are divided into co-current, fountain mode and counter-current spray dryers.
Characteristics:
1. The drying speed is fast, the surface area of the material liquid is increased after atomization, and 95% to 98% of the water can be evaporated instantly in the hot air flow. It only takes 5-15 seconds to complete a thousand drying, with instant drying characteristics.
2. The special air distribution device reduces the resistance of the equipment and effectively provides the air handling device of the dryer.
3. The production process is simplified and suitable for continuous control of production. Liquids with a moisture content of 40-90% can be dried into powder once, reducing crushing, screening and other processes to improve product purity.
4. The material can complete the drying process in a short time, which is suitable for the drying of heat sensitive materials and can maintain the color, fragrance and taste of the material.
5. The product has good dispersibility, fluidity and solubility, and the product particle size, looseness, and water content are adjustable within a certain range.
Applicable Materials

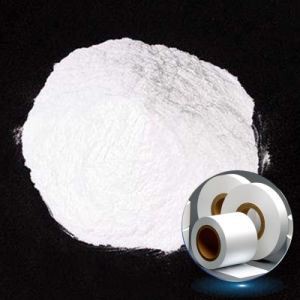

Lithium Battery Separator Powder
Separators are critical components in liquid electrolyte batteries. A separator generally consists of a polymeric membrane forming a microporous layer. It must be chemically and electrochemically stable with regard to the electrolyte and electrode materials and mechanically strong enough to withstand the high-tension during battery construction. They are important to batteries because their structure and properties considerably affect the battery performance, including the batteries energy and power densities, cycle life, and safety.
Food: Amino acid, vitamin, egg powder, bone powder, protein, milk powder, blood powder, soy sauce powder, coffee, tea powder, glucose, pentadiene carboxylic acid, pectin, flavours, vegetable juice, yeast, starch, etc.
Ceramic: Alumina, zirconia, magnesium oxide, Titania, pottery clay, china clay, all kinds of magnetic porcelain and metal-oxides, etc.
Chemical: Aluminum polychloride, disperse dyes, reactive dyes, organic catalyzer, white carbon black, washing powder, zinc sulfate, silica, sodium metasilicate, potassium fluoride, calcium carbonate, potassium sulfate, inorganic catalyzer, wasted liquid, etc.
Specification
Type | Spray Dryer | |||||||
5 | 25 | 50 | 100 | 150 | 200-3000 | |||
Inlet Temperature | ≤ 350°C | |||||||
Outlet Temperature | 80-90°C | |||||||
Evaporate Capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200-3000 | ||
Driving Force | compressed air drive | mechanical drive | ||||||
Rotate Speed | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | ||
Diameter of Atomizer (mm) | 50 | 120 | 120 | 120 | 150 | 180-340 | ||
Heating Source | Electricity | Electricity | electricity +steam+fuel oil+coal gas | electricity +steam | electricity +steam+fuel oil+coal gas | To be solved by users | ||
Electric-heating Power (kW) | 9 | 45 | 60 | 81 | 99 | |||
Recovery Rate (%) | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ||
Installation Size | A(mm) | 1000 | 1290 | 1730 | 2500 | 2800 | ||
B(mm) | 2100 | 3410 | 4245 | 5300 | 6000 | |||
C(mm) | 2300 | 4260 | 4645 | 6000 | 6700 | |||
φ D(mm) | 1060 | 1800 | 2133 | 2560 | 2860 | |||
E1(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
E2(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
F(mm) | 750 | 1000 | 1250 | 1750 | 1970 | |||
G(mm) | 530 | 1700 | 1750 | 1930 | 2080 | |||
H(mm) | 530 | 1300 | 1800 | 2600 | 3050 | |||
I(mm) | 530 | 1550 | 1600 | 1780 | 1960 | |||
