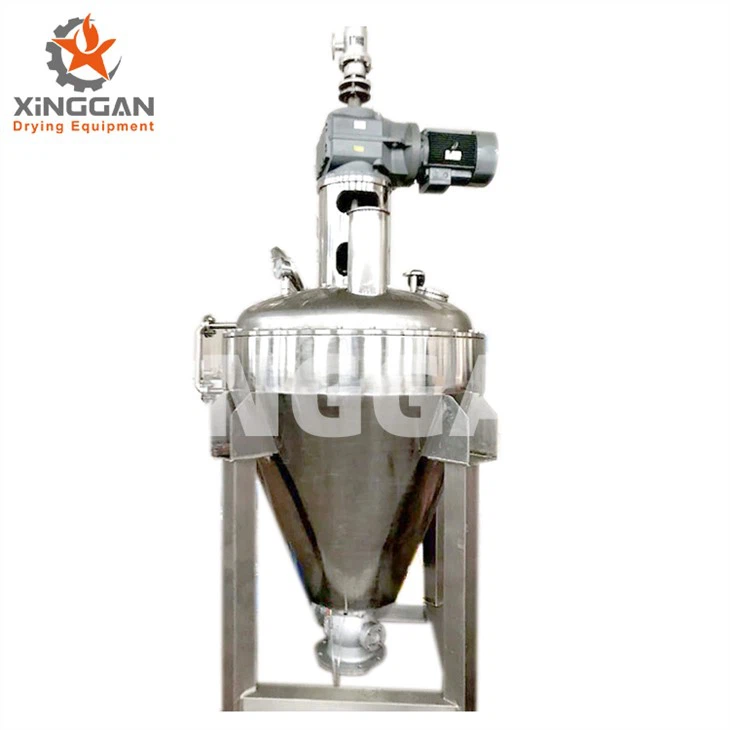

The single-cone spiral ribbon hybrid vacuum dryer is a kind of use of spiral ribbon to rotate the material and pass the heat transfer medium (such as hot water, heat transfer oil, steam, etc.) into the conical jacket and hollow spiral belt at the same time, so that the heated material will be removed from the Lifting around and falling from the middle, fast and continuous cycle flip, and the water vapor is taken away in time through the vacuum in the cylinder, so that the material can achieve the purpose of drying and mixing in a short time.
Compared with the traditional vertical mixer, there is no transmission mechanism in the cylinder, which fundamentally eliminates the material pollution caused by the leakage of lubricating oil, and the operation is reliable and stable. It is especially suitable for the mixing of powders and particles with high hygiene requirements; it is also suitable for The mixing and mixing of viscous fluid or thick and wet materials is the main material; compared with other horizontal dryers, it has the advantages of convenient discharging, which can discharge 100% completely, and is convenient for operation and maintenance.
Its drying efficiency is 3-5 times that of the "Double Cone Rotary Vacuum Dryer" of the same specification.
Main Features
* The speed reducer directly drives the agitator to rotate.
* Wide application range, can be used for mixing powder and powder, powder and liquid, and can also be used as reaction equipment and drying equipment.
* A spray device can be added according to user requirements, so that a proper amount of liquid can be sprayed into the material.
* The rotation speed can be adjusted according to the process requirements. When the rotation speed is low, the drying effect is dominant; when the rotation speed is high. Its mixing effect is dominant. Therefore, by choosing this equipment, it is possible to combine the two types of equipment to achieve the purpose, and now they can be combined into one, saving costs.
Applications
The single cone vacuum dryer is more suitable for final drying of products, such as: powder, granule, paste and paste products, especially effective for drying fragile and heat-sensitive materials.Mainly applicable to medicine, food, chemical and other industries.
Technical Parameters
Item specifications | 50 | 100 | 200 | 500 | 1000 | 1500 | 2000 | 3000 |
Working volume（L） | 50 | 100 | 200 | 500 | 1000 | 1500 | 2000 | 3000 |
Maximum working volume（L） | 35 | 70 | 140 | 350 | 700 | 1000 | 1400 | 2100 |
Stirring power（kw） | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 15 | 18.5-22 |
Stirring speed（rpm） | 9-18 | 6-11 | ||||||
Operating temperature（℃） | 40-140 | |||||||
Evaporation capacity（kg/h） | 3-6 | 4-7 | 5-9 | 9-15 | 16-25 | 20-35 | 25-45 | 35-60 |
Dimensions（mm） | 100x65 0x1580 | 1200x80 0x2100 | 1300x95 0x2600 | 1600x12 00x3400 | 2000x15 00x4850 | 2200x180 0x5500 | 2500x20 00x6250 | 3000x28 00x6800 |
