Description

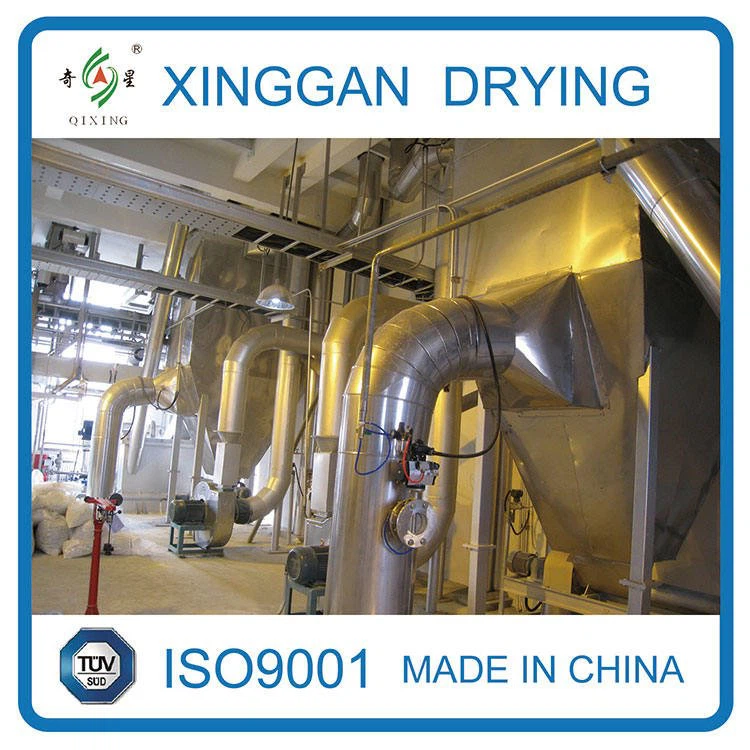

Blood Meal Flash Dryer is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type of high drying efficiency and low energy consumption equipment that researched and developed by our company.
Principle
The clean air heated by the heat exchanger is blown into the air inlet, screwed into the annular gap at the bottom of the drying chamber at an appropriate speed, and then enters the drying chamber in the tangential direction, and rises in a spiral shape: at the same time, the material can be stepless The speed-adjustable feeder is quantitatively added into the tower. In the drying tower, the material and hot air undergo sufficient and efficient mass-to-heat conversion. The dried powdery material is transported to the separator along with the hot air, where the finished product is collected and packaged, and the tail gas is further processed by the dust removal device and emptied.
Applicable Materials
Blood Meal Powder
The typical dry materials are:
Inorganic substances: borax, calcium carbonate, hydroxide, copper sulfate, iron oxide, barium carbonate, magnesium sulfate, antimony trioxide, various heavy metal salts, synthetic cryolite, magnesium carbonate, aluminum oxide, aluminum hydroxide, white carbon black Wait.
Organic matter: atrazine (pesticides), lauric acid, benzoic acid, benzoic acid, bactericide, sodium oxalate, cellulose acetate, etc.;
Ceramics: kaolin, silica, clay, etc.;
Dyestuffs: anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates.
Foods: soy protein, starch, distiller's grains, wheat sugar, wheat starch, etc.
Specification
Model | Chamber Diameter (mm) | Size (mm) | Total Power (kW) | Air Volume (m3/h) | Water Evaporation(kg/h) | Occupied area (m2) |
XSG-2 | 200 | 250×800 | 0.75-2.2 | 300-800 | 10-20 | 3500×2500 |
XSG-3 | 300 | 400×300 | 3-4 | 600-1500 | 20-50 | 3800×2700 |
XSG-4 | 400 | 500×500 | 4-7.5 | 1250-2500 | 25-70 | 4000×3000 |
XSG-5 | 500 | 600×000 | 5.5-11 | 1500-4000 | 30-100 | 4200×3200 |
XSG-6 | 600 | 700×200 | 7.5-18.5 | 2500-5000 | 40-200 | 4250×3250 |
XSG-8 | 800 | 900×600 | 11-18.5 | 3000-8000 | 60-600 | 4500×3500 |
XSG-10 | 1000 | 1100×000 | 15-30 | 5000-12500 | 100-1000 | 4750×3750 |
XSG-12 | 1200 | 1300×200 | 15-37 | 10000-20000 | 150-1300 | 5000×4000 |
XSG-14 | 1400 | 1500×400 | 30-55 | 14000-27000 | 200-1600 | 5250×4250 |
XSG-16 | 1600 | 1700×1000 | 45-75 | 18700-36000 | 250-2000 | 5500×4500 |
