CH series trough type mixer is suitable for mixing powder or liquid materials so as to mix main material and auxiliary one on the basis of fixed proportion.
Main Features
* Those parts closely contacting the materials are all made by stainless steel. There is very little space between blades and barrel and is no dead corner.
* Sealing devices are built on two ends of stirring shafts.
* All of them are capable of keeping materials from leaking.

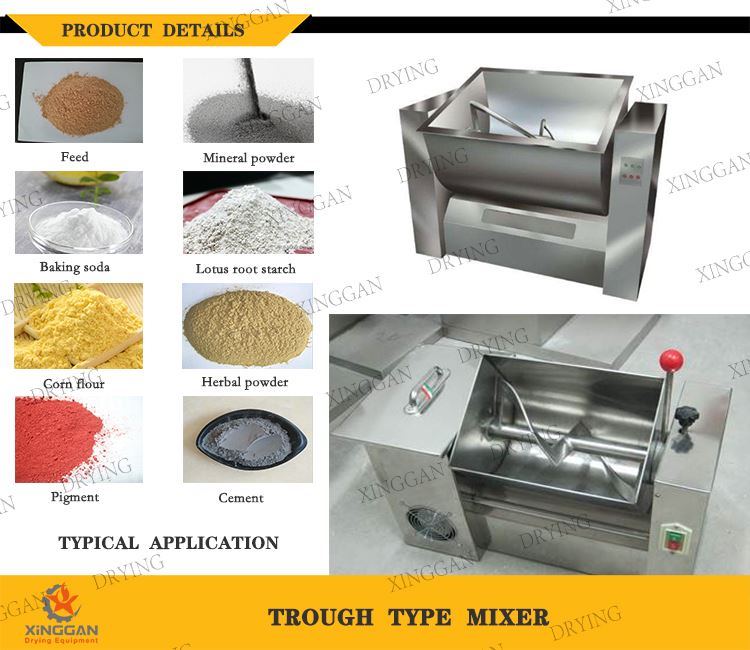

Applications
The trough type mixer is well adopted in industries like pharmacy,chemicals, food,and so on.
Technical Parameters
Model/Item | CH-100 | CH-150 | CH-200 | CH-400 |
Motor Power (kw) | 2.2 | 3 | 3 | 5.5 |
Stirring Speed (rpm) | 24 | 24 | 24 | 24 |
Inverted Angle (°) | 105 | 105 | 105 | 105 |
Weight (kg) | 350 | 500 | 650 | 1200 |
Overall Dimension(mm) | 1400×500×1000 | 1600×600×1100 | 1800×700×1200 | 2000×820×1460 |
