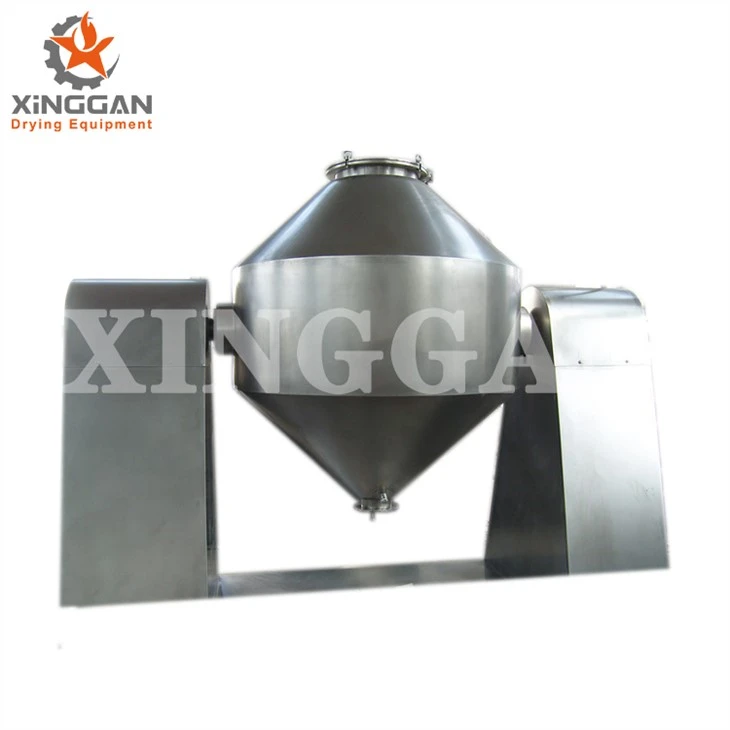

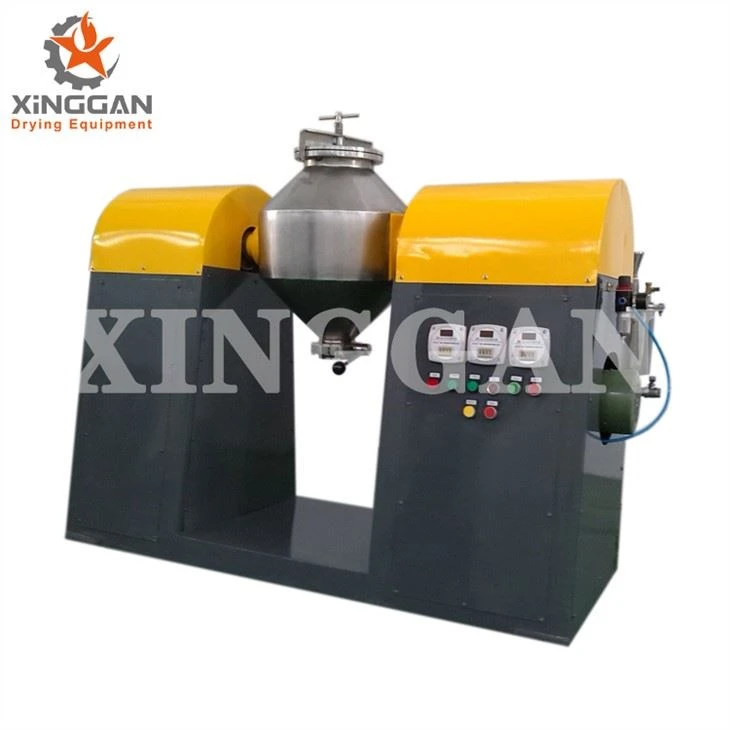

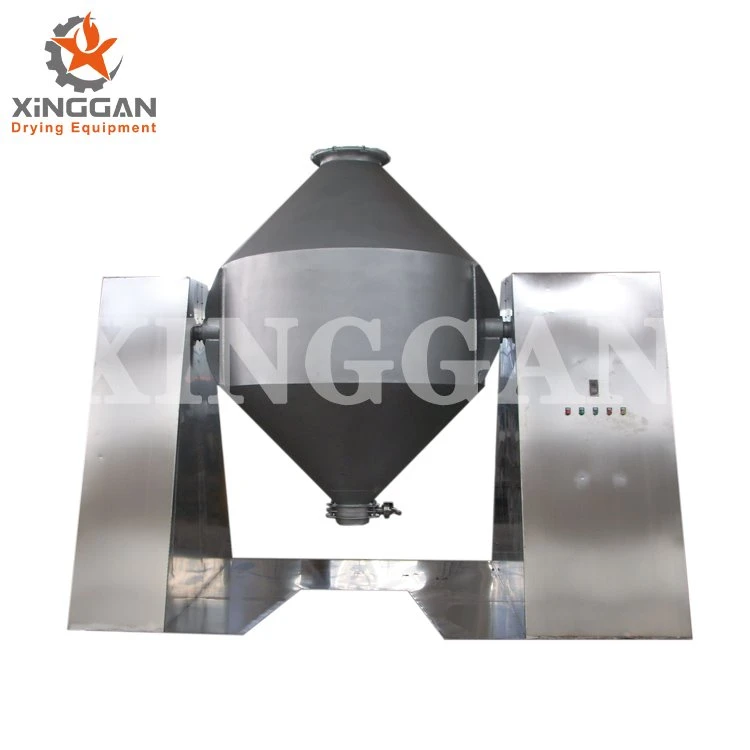

The SZH series double cone rotary mixer transfers powder or granular materials into the double cone container by vacuum conveying or manual feeding. With the continuous rotation of the volume, the material undergoes complex impact movement in the container to achieve uniform mixing.
Main Features
This double cone rotary mixer machine saves energy, is easy to operate, low labor intensity, and high work efficiency.
Applications
This double cone rotary mixer machine is suitable for mixing powdery and granular materials in the pharmaceutical, chemical, food, and building materials industries.
Technical Parameters
Specification/ Item | Total Volume (L) | Working Volume (L) | Feeding Amount (kg) | Feeding Speed (rpm) | Power (kw) | Weight (kg) |
0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
